Slurry Treatment Plant For TBM,Hydro-Cyclone Separation System. High-Pressure Group Injection Pump.
Slurry Treatment Plant For TBM,Hydro-Cyclone Separation System. High-Pressure Group Injection Pump. Slurry Treatment Plant For TBM,Hydro-Cyclone Separation System. High-Pressure Group Injection Pump. Slurry Treatment Plant For TBM,Hydro-Cyclone Separation System. High-Pressure Group Injection Pump. Slurry Treatment Plant For TBM,Hydro-Cyclone Separation System. High-Pressure Group Injection Pump. Slurry Treatment Plant For TBM,Hydro-Cyclone Separation System. High-Pressure Group Injection Pump. Slurry Treatment Plant For TBM,Hydro-Cyclone Separation System. High-Pressure Group Injection Pump.

Slurry Treatment Plant For TBM,Hydro-Cyclone Separation System. High-Pressure Group Injection Pump.

Slurry Treatment Plant For TBM,Hydro-Cyclone Separation System. High-Pressure Group Injection Pump.
INQUIRY
Description
Slurry Treatment Plant For TBM,Hydro-Cyclone Separation System. High-Pressure Group Injection Pump.

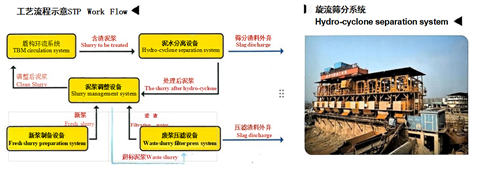

工艺流程示意STP Work Flow        旋流筛分系统 Hydro-cyclone separation system

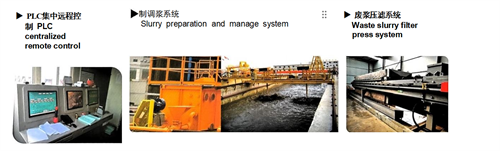

▶ PLC集中远程控制 PLC centralized  remote control
制调浆系统
Slurry  preparation and  manage system
 废浆压滤系统
Waste slurry filter press system


盾构泥水处理系统特点介绍
TBM Slurry Treatment System Introduction

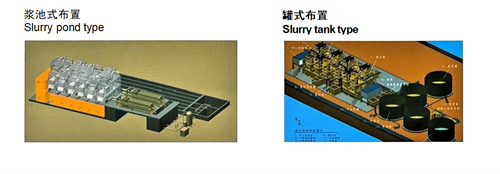

Independent R&D of ZX series STP to fully support construction of the tunnel boring machine.It can meet the 500-6000m³/h TBM slurry treatment and recycling requirements.
Adopt the international advanced technology.Modular design,product customization.
The overall structure is reasonable,cover an small rea,low noise,high eficiency equipment,engineering applicability,long service life.
The method of centralized remote control system adopts PLC.Each point has the automatic fault diagnosis and display function.
Slurry  treatment  technological  process  obtains  the  national  utility  model  patents,filter  press  technique  obtain  national  invention  patent.The  unique  filter processing design concept.Use the chemical modified such as lower viscosity,filtration combined with piecewise filter pressing way,to realize the filter pressing  water to achieve the discharge standard,filter cake water content is below 25%

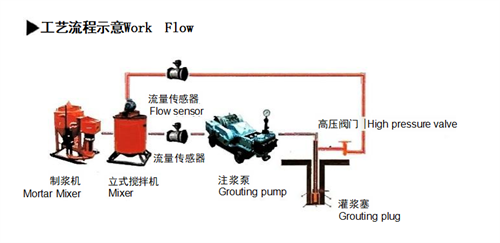

注浆设备    High-pressure grout injection pump series

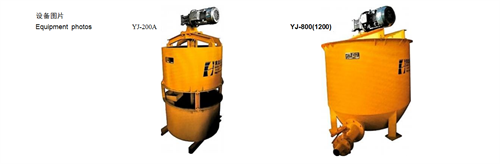

It is a special mortar mixer for mixing cement,bentonite with  water  or  other  additive.It  is  mainly  used  for  the engineering    construction     of    hydroelectricity,railway, highway,infrastructure,mining  etc.Compared  to  ordinary blade    agitator,it    mix    grout     by     adopting    vortex technology,so  it   not  only  make  grout  rapidly,but  also mix grout efficiently



主要技术参数 Main technical parameters

参数名称              Name of parameters/L ZJ-400D ZJ-800
公称容量                 Nominal capability 400 800
最高许用水灰比Allowed scale of water and ash 0.5:1 0.5:1
制浆时间            Time of grout making/min 3 3
额定功率                        Power/KW 7.5 15
重量(包括动力)                Weight/KG 450 700
外形尺寸                    Dimension/mm 1350×1150×1460 1725×1373×1848


The pump is used to grouting cement grout as well as mortar.It is high in pressure,stable in flow,reasonable in structure and easy for operation.It is applied to grout injection for dam      foundation,slope,tunnel      and      foundations,onsolidation      grouting,flower-tube grouting,mixing    pile,bridge    pre-stress    grouting    and    other    relative    reinforcement projects.It can be used to replace slurry pump for geological rock core drilling.
主要技术参数  Main technical parameters

参数型号
Parameters		 理论排量
Theoretical Flux
(I/min)		 额定压力
Rated pressure
(MPA)		 进道直径
Inlet diameter
(mm)		 排道直径
Outlet diameter
(mm)		 功率 Power (KW) 重量(不含动力kg) Weight
(excluding power kg)		 外形尺寸
External dimension
(mm)

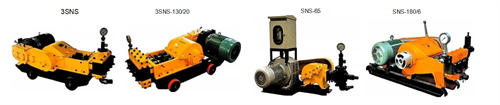

3SNS 100 207 10 4 64 32 18.5 730 1800×945×705
3SNS-130/20 85 130 20 10 64 32 33 750 1800×945×705
SNS-65/1.5 65 1.5 38 25
