Product Overview

Every load a counterbalance truck lifts is carried on its axles, and the axle damper is the part that stops the shock of that load being hammered straight into the frame. This is the Toyota forklift axle damper for the FDZN-series truck, supplied together with the inner element that seats inside it and takes the flexing. The damper bolts into the axle mounting; the element is the part that actually moves, and it is usually the first of the two to soften on a truck that works long shifts on concrete and patched yard surface.

Fitting is a straight replacement rather than a modification. The mounting face and the seat for the inner element follow the original layout, so the old damper comes off and the new assembly goes on without adaptor plates, spacers or re-drilled holes. That matters when the truck is already booked back onto the floor for the next shift.

Typical buyers are fleet workshops keeping Toyota counterbalance trucks in service, independent forklift repair shops rebuilding an axle for a customer, and dealers who hold a small stock of fast-moving construction machinery spare parts for the contractors around them.

These trucks spend the day shuttling between trailers, racking and the yard gate — hundreds of small compressions an hour rather than one large one. That cycle is what makes the damper a service item on a working truck rather than a lifetime part, and it is why the element and the damper are worth watching together.

Specifications

Confirming the Reference

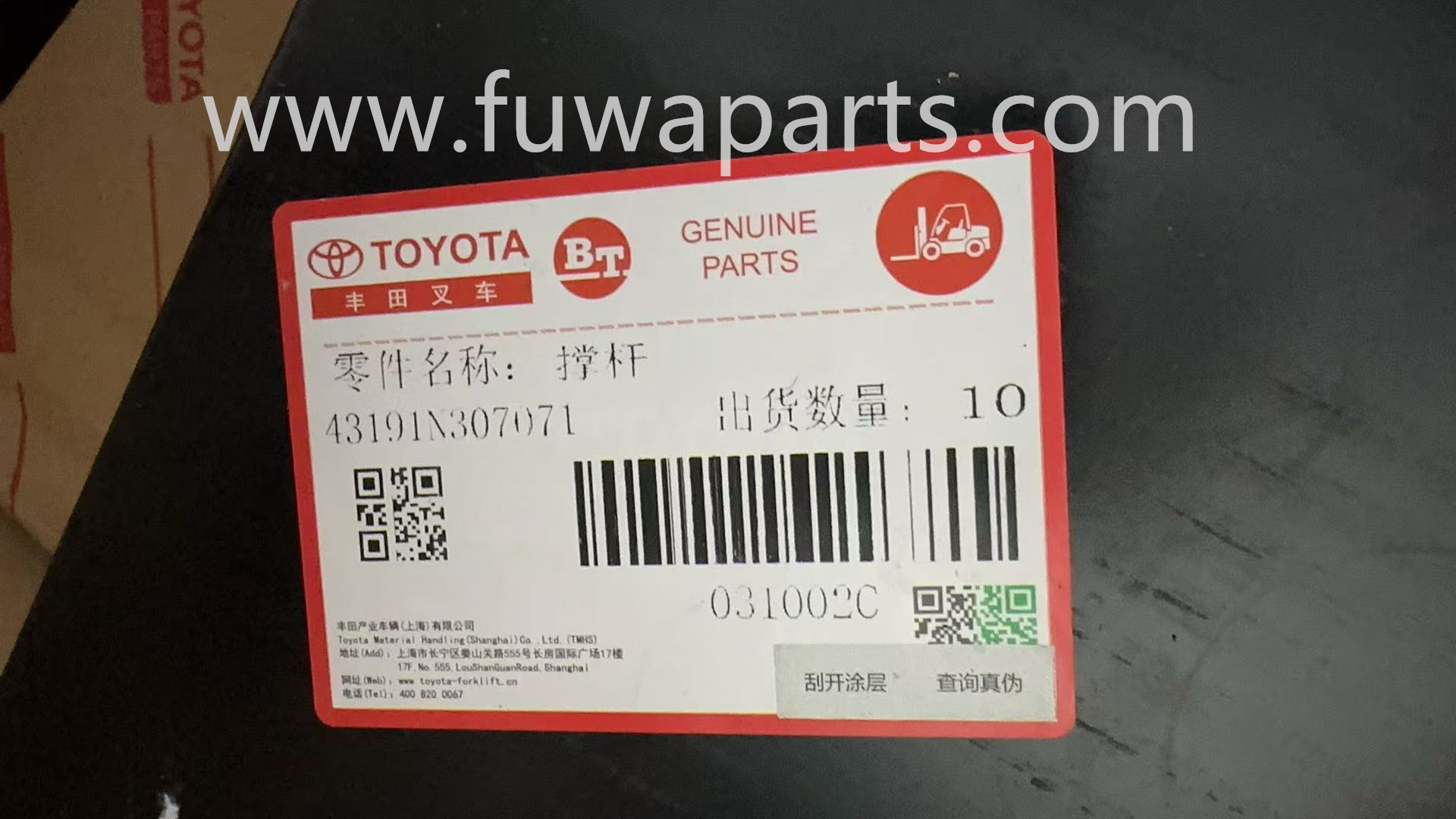

1. Start with the number on the old damper. Clean the housing and read what is stamped or printed on it; when it matches 43191N307071, the Toyota forklift axle damper is the right one whatever the truck's service history says.

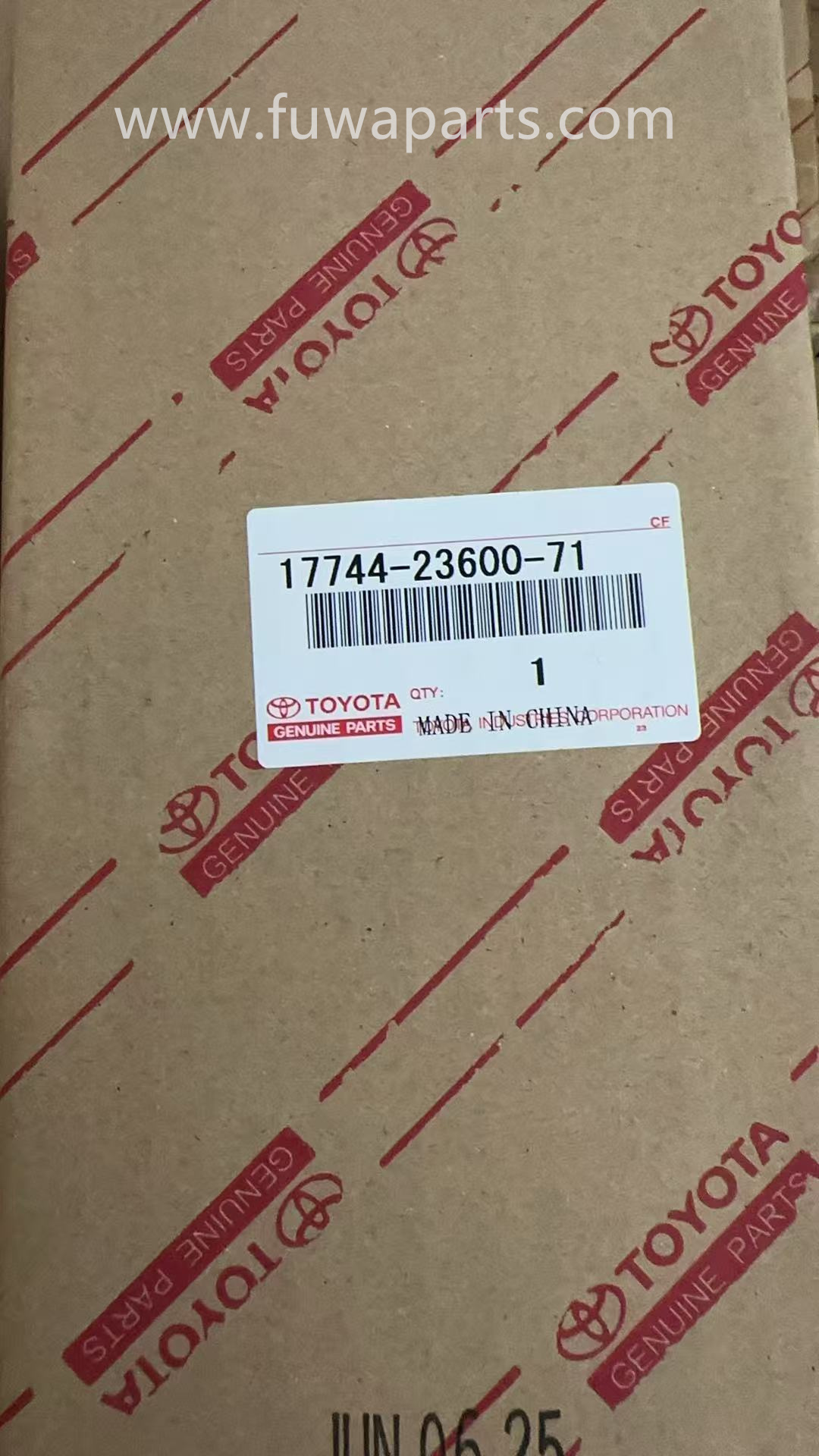

2. Check the inner element on its own. The element carries 17744-23600-71, a different part with a different reference, and it is ordered as its own line.
3. Copy the model string from the nameplate exactly as it is written. The suffix after the model identifies the build, and a damper that suits one build of this truck will not necessarily suit the next.
4. Compare the mounting face rather than trusting the shape from memory. A flat flange, circular bolt holes and raised bosses should all line up with the old part when you hold the two together.
5. Note what the axle actually needs. Count the dampers fitted on the axle and decide whether the elements are being changed at the same time, so the whole job sits on one order.

Wear Signs and Replacement Timing

• A ride that has gone hard. A tired forklift axle damper stops absorbing and starts transmitting: ground the truck used to cross with a thud now sends every joint and crack up through the seat and the steering column.
• Chassis rock under load. With a full pallet up, a worn damper lets the frame move more than it should over the axle, and operators describe the truck as loose or vague once the mast is raised.
• Bolts that keep coming loose. A damper that has lost its preload hammers its own mounting bolts. If the same bolts need re-tightening at every service, look at the damper before blaming the bolts.
• A split, cracked or flattened element. Once the truck is on stands, look at the element: cracks at the shoulder, a permanent squash, or a surface gone hard and shiny all mean it has finished its working life.
• Knock-on damage. Shock that the damper no longer absorbs travels into the mast mounts, the axle brackets and the tyres, and those cost considerably more to put right than a damper and an element.
• Replace both halves. Damper and element are matched to each other. A new element working inside a tired damper runs through its travel at the wrong angle, and a new damper sitting on an old element simply passes the load back into the old part.

Fitting Steps

1. Put the truck on level ground, lower the forks and chock the wheels. Lift and support the axle so the weight is off the damper before any bolt is loosened — a damper still under load can shift as the last bolt comes out.
2. Wire-brush around the mounting bolts and photograph the flange in position against the axle bracket. That photo settles any argument about how the assembly sat before it came apart.
3. Take the mounting bolts out and keep them in a tray. If the threads are stretched, the shanks are corroded or the heads are chewed, fit new bolts rather than reusing the old ones.
4. Ease the old damper out of its seat and clean the seat itself. Rust scale, dried mud and paint flakes trapped under a new damper will show up later as a wobble or a fresh knock.
5. Seat the new inner element into the new damper first, then offer the assembly up as one piece. Trying to fit the element after the damper is bolted in usually ends with it pinched off-centre.
6. Fit the bolts finger-tight, check that the flange sits flat with no gap at any corner, then tighten evenly to the figure given in the truck's workshop manual.
7. Lower the truck, bounce the front end a few times and re-check the bolts. Re-torque after the first shift: a new damper settles, and a bolt that was tight on fitting can be loose by the end of the day.

Material and New Condition

Condition first: everything on this product is new. Not reconditioned, not pulled from a donor truck, not a used damper that has been cleaned and repainted — a new damper and a new element, each with its own printed label. For a part that lives under load and vibration that distinction matters more than it does for a filter or a hose. A damper that has already taken its set cannot be cleaned back into shape, and a re-used element has already lost the rebound you are buying it for.

The steel components are produced in the alloy grades we use across the range — 35SiMn, 35SiMnMo and 28CrMnMo. These are the grades chosen for load-bearing chassis and structural parts, picked for strength combined with impact resistance rather than hardness alone: what you want in a bracket that has to hold a flexing element in place without cracking around the bolt holes. The same grades sit behind the heavy equipment spare parts we supply for cranes and drilling rigs, so the material side of the order is familiar ground rather than a one-off.

New condition is also about what the part does not need. There is no welding to dress up, no straightened bracket, no drilled-out hole to make it fit again. The job at the bench is remove, clean, fit — not repair first, fit second.

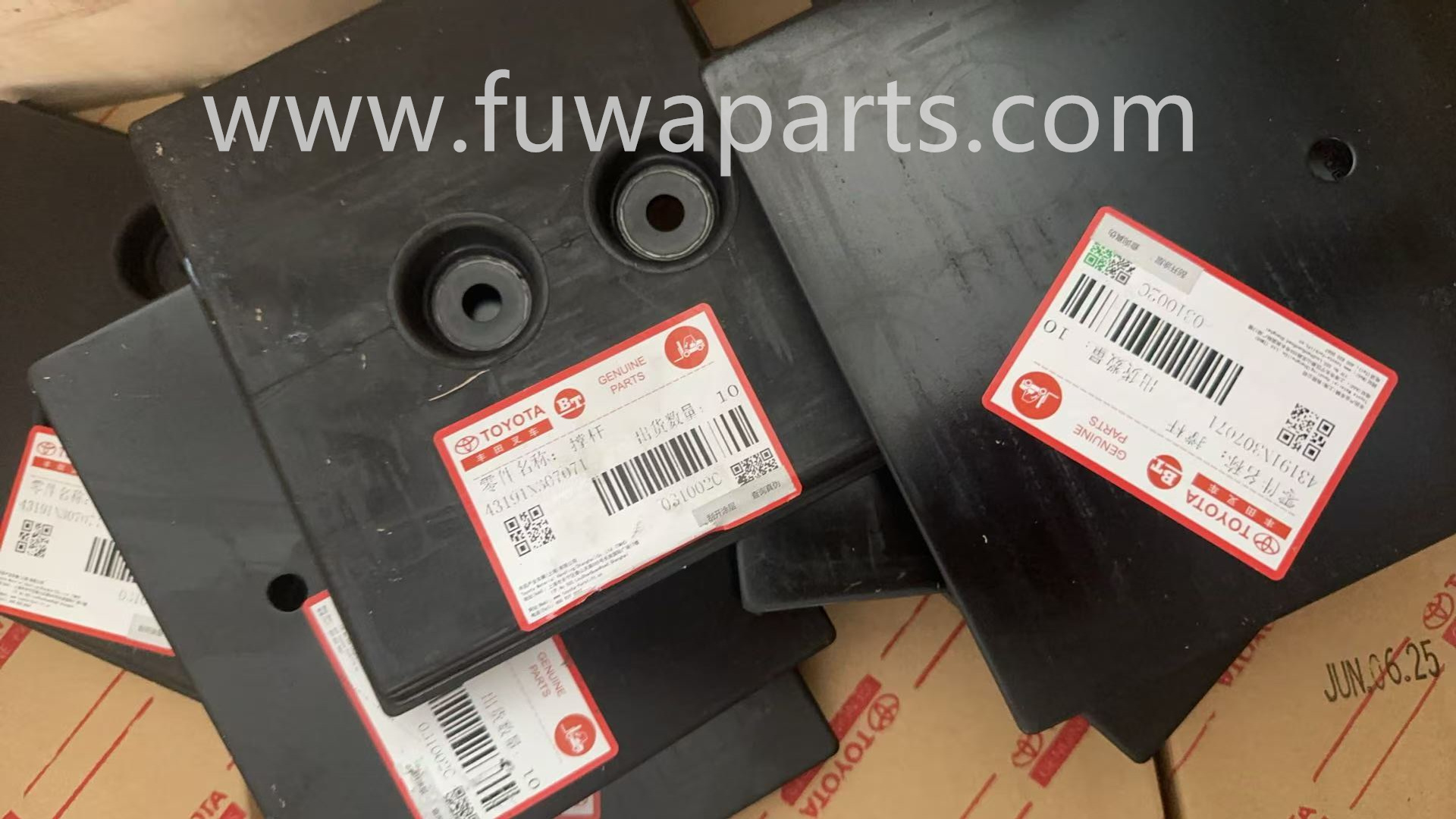

When the carton arrives, put the new damper beside the old one before you touch the truck. Bolt-hole spacing, flange shape and the depth of the element seat should all line up, and the label on the carton should repeat the reference you ordered.
